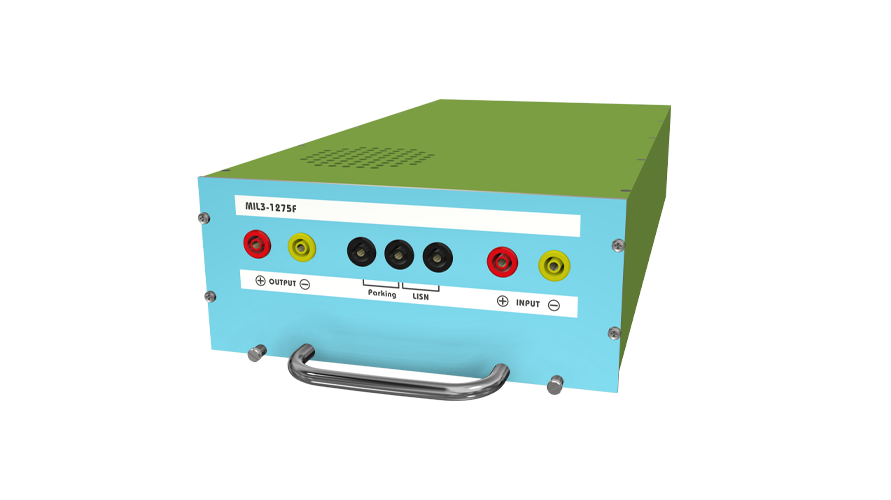

A plug-in to enable MIL-STD-1275F, injected voltage spike test. Compliant with MIL-STD-1275F Section 5.3.3.1.1, with an integrated bypassable LISN and 8 uF capacitance across the power lines.
✓ Injected voltage spike
✓ Bypass-able Integrated Line Impedance Stabilisation Network
✓ Impulse circuitry and energy fulfils MIL-STD-1275F
✓ Extends application of the MIL-MG3/MIL3000 mainframe
✓ Use for 28V DC military vehicle applications, up to DC 40 V / 25 A
✓ Calibrated between 100 V and 400 V, 250 mJ @ 250 V
- MIL-STD-1275
