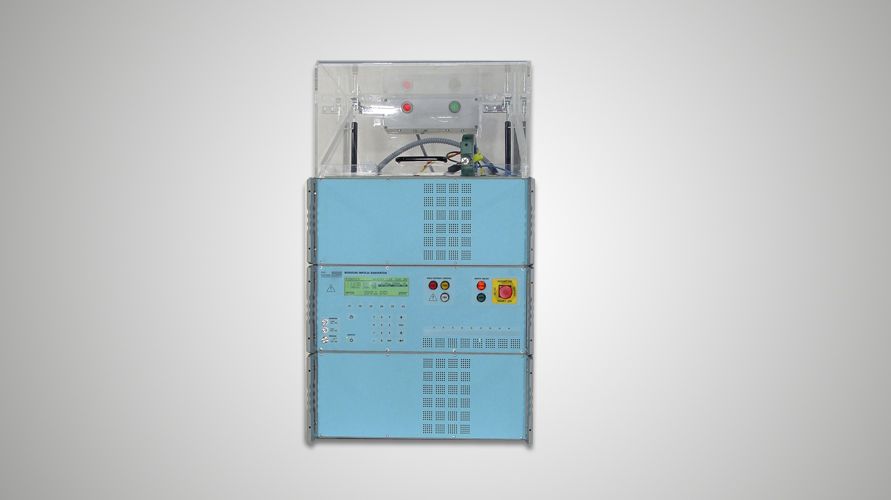

MIG0603CB is an impulse generator specially designed for circuit breaker testing according to IEC 60947, IEC 61009 and IEC 61008. The generator includes impulse voltage waveshape 1.2/50us, impulse current waveshape 8/20us and 100kHz ringwave. Included is a single phase Coupling Decoupling Network (CDN) up to 440V / 16A.
- 8/20µs up to 3000A
- Ring 100kHz up to 250A
- 1.2/50µs up to 12kV
- IEC 61008-1
- IEC 61009-1
- IEC 61439-1
