790602 AVI-LV5 - Indirect Lightning Generator - Pin Injection & Cable Bundle
AVI-LV5

AVI-LV5

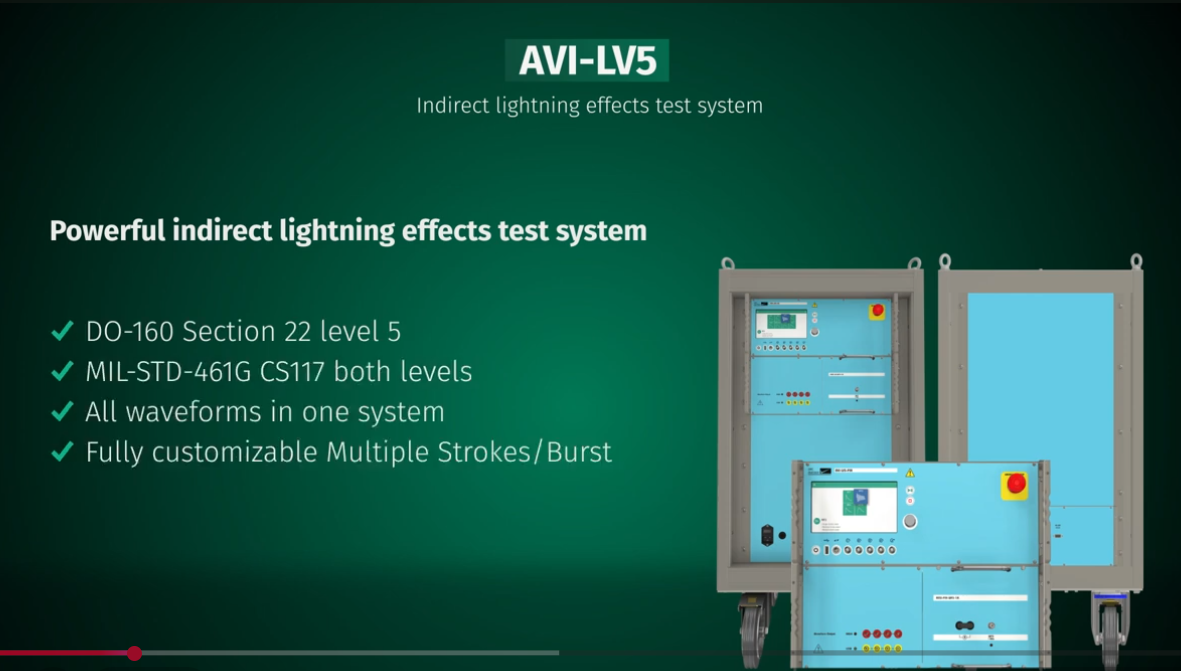

PIN Injection & Cable Bundle generator for Indirect lightning effects test

AVI-LV5 is a powerful system that includes all waveforms for RTCA DO-160: Section 22 and MIL-STD-461G: CS117 testing. All event types are available for PIN Injection and Cable Bundle tests.

AVI-LV5 is a powerful system that includes all waveforms for RTCA DO-160: Section 22 and MIL-STD-461G: CS117 testing. All event types are available for PIN Injection and Cable Bundle tests.  Combined with only two couplers, AVI-LV5 is a compact and resourceful solution to indirect lightning effects testing needs.

A smart solution: AVI-LV5 comes with the latest Version of EPOS. The Operating system from EMC PARTNER offering predefined test routines, customizable report functions and a deeply customizable parameter editing. Operation can be done directly on the generator's touch screen or via the comfortable TEMA3000 software test suite.

System Features

  • Advanced functionality and smart options
  • Additional WF5A voltage available
  • Gigabit Ethernet Communication
  • Efficient & fast operation with modern interface
  • Highly reproducible impulses
  • Automation Software TEMA3000 available
  • Quick and simple firmware and software update

 Pulses

  • WF1 Single / Multiple Strokes
  • WF2 Single / Multiple Strokes
  • WF3 - 1/10 MHz Single- & Multiple Strokes, Multiple Burst
  • WF3 - 1 MHz PIN
  • WF4 - PIN
  • WF4 - Single / Multiple Strokes
  • WF5A  Current Single / Multiple Strokes
  • WF5A Voltage Single / Multiple Strokes
  • WF5A PIN
  • WF5B Single / Multiple Strokes
  • WF6 Multiple Burst
  • Option for up to 30 Subsequent strokes

 Documents

 Indirect Lightning - AVI-LV5

 Your Benefits

  • Adjustable subsequent stroke levels
  • Built-in pin injection power blocking devices
  • Pin injection transient blocking devices
  • 5 μH or 50 μH LISN
  • Injection transformers for all required levels & waveforms
  • Custom WF3 CB plugins on demand
  • Ready for PLC integration

 Product Options

 - DO-160 Complete Test System
 - DO-160 PIN Injection System
 - DO-160 Cable Bundle / CS117 System
 - LISN 5uH (3-phase)
 - LISN 50uH (3-phase)
 - 270 Vdc option for LISN
